IPX1 IPX2 Drip Waterproof Testing Machine
Name:IPX1 IPX2 Drip Waterproof Testing Machine
Type:BND-IPX12B
Manufacturer:We are specialized in producing all kinds of IPX1 to IPX9 waterproof test euipment, more detail please contact us.
Product Description:

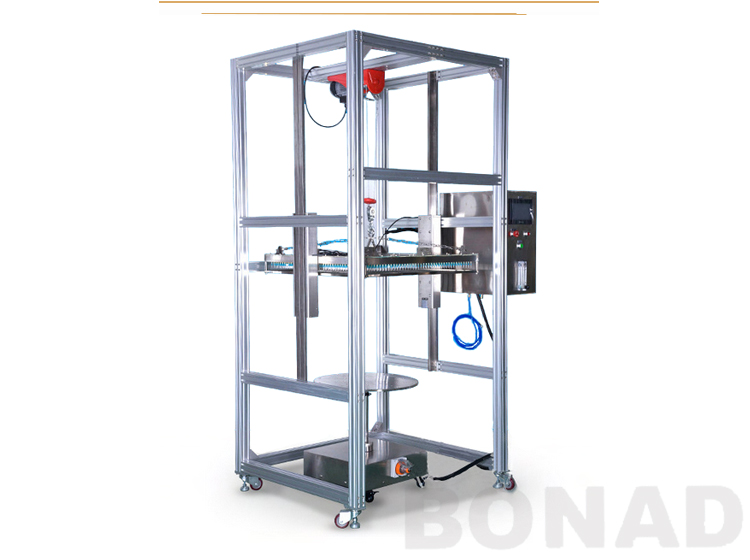

IEC60529 IPX1 IPX2 Vertical Column type Drip Waterproof Testing Machine

Model: BND-IPX12B

Vertical Column Type drip rain tester Standard:

In accordance with IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)".


Appliance:

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

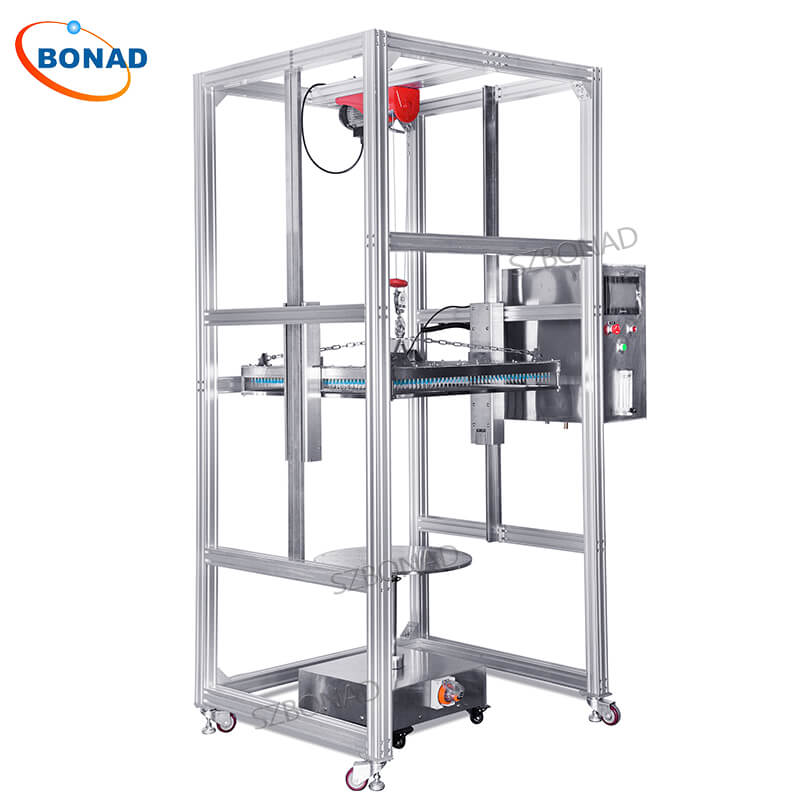

Detailed Images

No.
Model
BND-IPX12B-800
BND-IPX12B-1000
BND-IPX12B-1600
1
Drop of rain area
800*800mm
1000*1000mm
1660*1660
2
Equipment outer dimensions
L1000*D1000*H2300mm
L1200*D1200*H2300mm
L1800*D1800*H2210mm
3
Turntable diameter
¢500 mm
¢600 mm
customize
4
Dripping aperture
¢0.4mm。
5
The distance between holes
20*20 mm
6
Rainfall
1-5mm/Min(±0.5mm/min)
1.7mm/Min(total flow: 4.35L/min)
7
Flow adjustment mode
manual setting
8
Drop of rain tank lifting height
1000*1800 adjustable
1000*2000 adjustable
9
Turntable bearing
50KG
10
Turntable Speed
1 r/min
11
Turntable Adjustable Incline
0° or 15°
12
Turntable lifting range
Fixed
13
Testing time
0-999 min
14
Protective device
Leakage, water shortage, short circuit
15
Power (V)
2200V
16
Power (KW)
1
17
Standards compliant
IEC60529:1989+A1:1999(IPX1 IPX2)

Key Features

1. Versatile Waterproof Level Testing: Suitable for both IPX1 and IPX2 waterproof level tests.

2. Stable Structure: Column structure with four columns fixed on the ground ensures smooth operation and easy on-site installation.

3. Durable Materials: The equipment rack is made of high-quality aluminum alloy, and the sample turntable is constructed from SUS304# stainless steel plate for long-term use without rust.

4. Advanced Drip Board Design: Vacuum design drip board made of high anti-rust stainless steel material for durability.

5. Efficient Lifting Mechanism: High-quality electric hoist controls the drip board for gentle lifting.

6. User-Friendly Nozzle Design: Brass cone design allows needle replacement without tools; stainless steel mesh shield prevents accidental contact.

7. Precise Flow Control: Manual flow meter control valve for precise adjustment of drip rain flow.

8. Automated Operations: Drip plate can be automatically raised and lowered with photoelectric switch detection stopping at 200mm.

9. Compressed Air Drying Function: Removes excess water post-test to prevent scaling and blockages.

10. Stepper Motor Turntable: Speed can be set via touch screen to meet IPX1 standard (1r/min) and automatically complete IPX2 test requirements (4 positions, 2.5min each).

11. Programmable Sample Power Socket: AC220, 10A socket controlled by program for power cycles during testing.

12. Advanced Control Components: Features a 7-inch touch screen + Panasonic PLC; electrical components from LS, Omron; compliant wiring technology with clear labeling.

13. Intuitive Touch Screen Control: Self-developed operation interface supports multiple languages and allows automatic testing based on selected waterproof levels.

Applications

This versatile machine is designed to test various products including:

· Electronic devices

· Electrical products

· Lamps

· Electrical cabinets

· Electrical components

· Automobiles and motorcycles

· Parts and components of the above items

After undergoing rigorous testing with our drip box waterproof testing machine, you can confidently determine if your products meet performance requirements, facilitating product design improvements, testing processes, and factory inspections.
