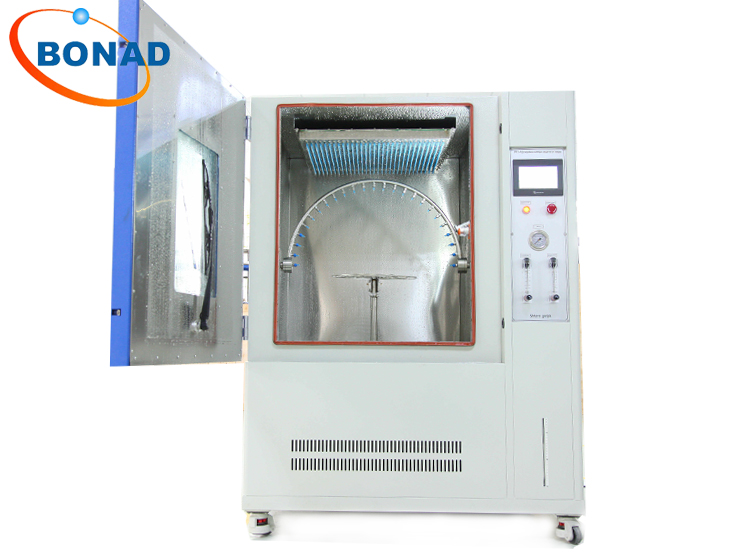

IPX1 to IPX4 Intergrated Drip rain test and swing pipe rain test chamber

Model:BND-IPX14B-R400

Standard:

In accordance with IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "enclosure protection class (IP code)" 14.2.1,14.2.2 terms and Figure 3 and GB7000.1 "lamps Part I: General Requirements and test "9.2.3 requirements

the Specificaiton of rain chamber

Inner dimension	900L*900D*1050H mm
Outer dimension	1350L*1150D*1750H mm
Turntable diameter	￠400mm（R200mm is optional）
Turntable Max. load	50KG
Turntable lifting height	450-750 mm
Turntable tiltable angle	0° or 15°（horizontal direction）
Turntable speed	1 -5r/min（precise control ）
Turntable rotate	foreward / Turn back and forth / intermittent rotation
Testing time	0-999 min
Total weight	Appro. 230kg
IPX12 Technology Parameters
Drip plate area	600*600mm
IPX12 Spray aperture diameter (mm)	￠0.4mm
Space of Dripping aperture	20*20 mm
rainfall precipitation	IPX1=1mm/min   IPX2=3mm/min
Flow adjust	Manual setting
Drip plate lifting	Fixed
IPX34 Technology Parameters
Swing pipe radius	R400mm（R200mm is optional
Swing pipe Flow	IPX3=1.1L/min；IPX4=1.8L/min
Spray aperture size(mm)	0.4mm
Space of Spray aperture	50mm
Swing pipe inner diameter(mm)	15mm
Swing pipe angle	240°Turn back and forth 4S、720°Turn back and forth 12S（precise control or custom
Electric parameter
Power Supply	220V
Power Supply of samples	220V
Power	1.0KW
Protective device	Leakage, water shortage, short circuit
Standards	IEC60529:1989 +A1:1999 +A2：2013《Degrees of protection provided by enclosures(IP Code)》
