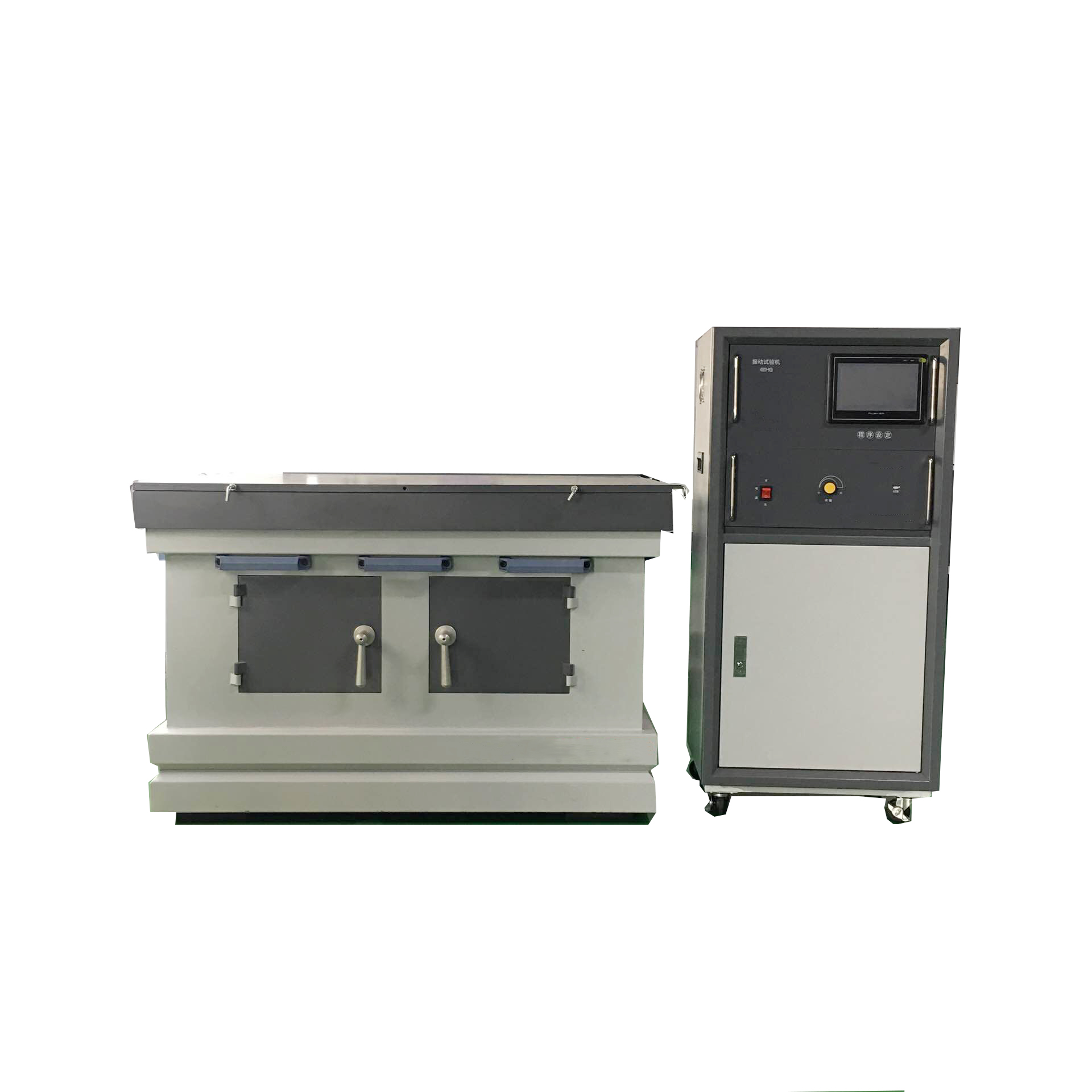

Vertical horizontal vibration machine
Name:Vertical horizontal vibration machine
Type:BND-70ZY
Manufacturer:BONAD provide all kinds of vibration machines, welcome to contact us for more details.
Product Description:

Vertical horizontal vibration machine


1, Function: sine wave, frequency modulation, frequency sweep, programmable, amplitude modulation, maximum acceleration, time control.

2. The working table size is about : 1100*800 MM.

The size of the table is 1100*800*900MM.

Control cabinet size: 500*380*1350MM

3. Vibration direction: vertical and horizontal

4. Test maximum load (kg): 100

5. It can meet the load of 100Kg of the tested object of the customer, and does not need to move the product to complete the vertical horizontal cyclic vibration test.

6, FM function: any frequency sweep in the frequency range

7, sweep function (Hz): (upper frequency / lower frequency / time range) can be set to sweep back and forth

8. Sweep rate: frequency change speed can be set

9, programmable function (Hz): 30 segments can be set arbitrarily (frequency / time) can be cycled

10, programmable color touch control system: can display vibration frequency / curve / date time / segment / mode / programming interface, and automatically store test data output through the U disk print or long-term storage. (not equipped with a printer)

11, vibration frequency range: 5-55HZ adjustable

12, the maximum amplitude (adjustable range mmp-p) 0-5MM

13, amplitude modulation mode: gear amplitude modulation

14, the maximum acceleration: 10 G

14, time control: any time can be set (seconds)

15, power supply voltage (V): 380 ± 10%

16, vibration machine power (KW): 4.2
