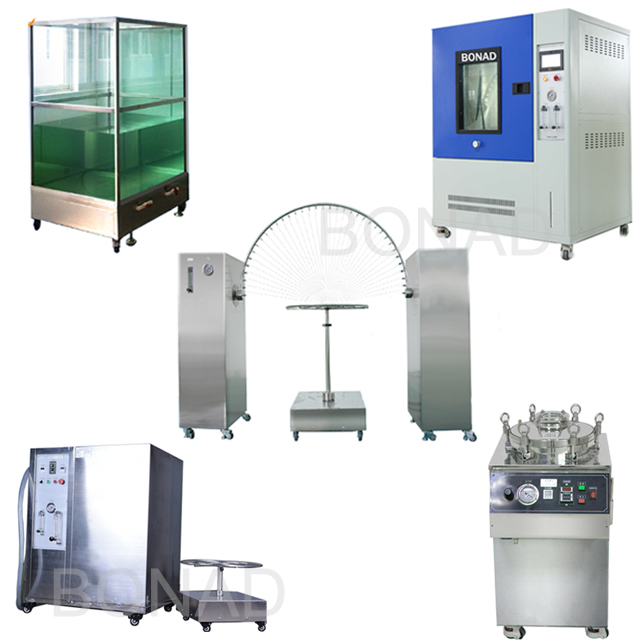

IPX1 to IPX9 waterproof testing machine
Name:IPX1 to IPX9 waterproof testing machine
Type:BND-IPX19
Manufacturer:BONAD professional manufacture IP grade from ipx1 to ipx9K test machines.
Product Description:

IEC60529 IPX12 IPX34 to IPX8 IPX9K waterproof testing machine

Product Description

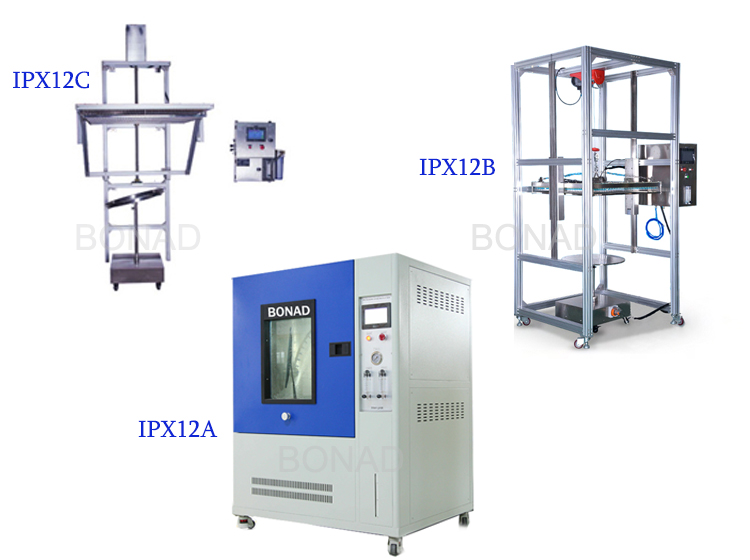

1. IPX12 Water Drip rain test chamber


No. model BND-IPX12A-200 BND-IPX12A-600
1 Drop of rain area 200*200mm(can customize) 600*600mm(can customize)
2 Equipment outer dimensions L350*D350*H750mm L800*D800*H1000mm
3 Turntable diameter ¢200 mm ¢600 mm
4 Dripping aperture ¢0.4mm.
5 The distance between holes 20*20 mm
6 Rainfall 1-5mm/Min(±0.5mm/min)
7 Flow adjustment mode manual setting
8 Drop of rain tank lifting height fixed
9 Turntable bearing 20KG 50KG
10 Turntable Speed 1 r/min
11 Turntable Adjustable Incline 0° or 15°
12 Turntable lifting range 200-400mm
13 Testing time 0-999 min
14 Protective device Leakage, water shortage, short circuit
15 Power (V) 220V
16 Power (KW) 1
17 Standards compliant IEC60529:1989+A1:1999(IPX1 IPX2)




2. IPX3/4 Oscillating Tubes Rain Test Equipment

No. Model BND-IPX34C-1600 BND-IPX34C-1400 BND-IPX34C-1200 BND-IPX34C-800
1 Swing pipe size (mm) R1600 R1400 R1200 R800
2 External dimensions (mm) L4000*D3200*H2800 L3800*D3000*H2600 L3200*D2400*H2400 L2400*D800*H2000
3 Flow (L / mm)) 0-10L/min 0-10L/min 0-6L/min 0-4L/min
4 Turntable Diameter Size (mm) 1000 (can customize,800,600,400,200 turntable)
5 Turntable height adjustable range 1750-2350mm 1750-2350mm 1350-1950mm 950-1550mm
6 Pendulum tube diameter (mm) >15 15
7 Water pore size (mm) 0.4 mm
8 Pendulum tube angle 120o(IPX3), 350o(IPX4)or customize
9 Swing speed tube 120°(to and fro) 4S,360°(to and fro)
12S(accurate control)or customize
10 Swing pipe material SUS304 stainless steel
11 Turntable speed test 1-5r/min(accurate control)
12 protective device Leakage, water shortage, short circuit
13 Power supply (V) 220V
14 Power(KW) 1
15 Standards IEC60529:1989+A1:1999,(IPX3,IPX4)

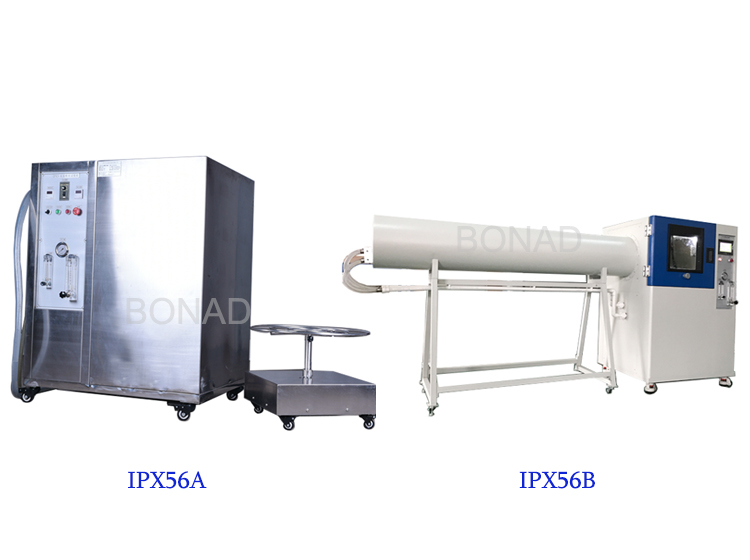

3, IPX56 strong water jet /water flush test equipment

Model IPX56BS-500L IPX56BS-700L IPX56BS-1400L IPX56BS-1700L IPX56BS-1900L
Inner size(mm)W*D*H 800*800*800 900*900*900 1180*1180*1000 1180*1180*1180 1180*1180*1300
Outer size(mm)W*D*H 4000*1050*1600 1150*1150*1700 4000*1450*1800 4000*1450*1850 4000*1450*2000
Turntable diameter(mm) 600 600 800 ¢800 800
IPX5 diameter(mm) 6.3
IPX6 diameter(mm) 12.5
IPX5 flow(L/min) 12.5±0.625
IPX6 flow(L/min) 100±5L/min
Power(Mpa) According to the provisions of water flow regulation
spray water distance 2.5M
Pump stainless steel multi-stage pump
Spray nozzle fixing method machinery fixation
Water pipe materials Stainless steel+PPR
Inner box materials SUS304#stainless steel
Sample table materials SUS304#stainless steel plate
protector Electric leakage, water-break, cutting-out
Power supply(V) 380V
Power(KW) 3
Standard IEC60529:1989+A1:1999,GB4208,GB7000.(IPX5,IPX6)

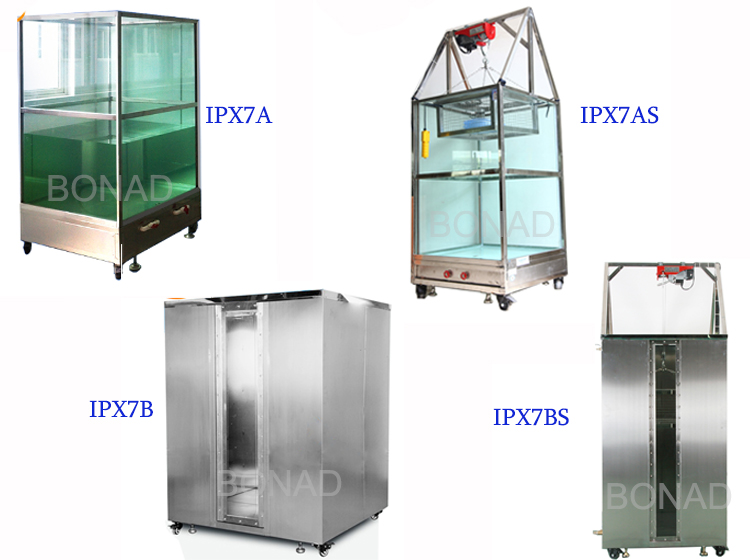

4, IPX7 Water immersion test chamber

No. Model BND-IPX7B-108L BND-IPX7B-432L BND-IPX7B-960L BND-IPX7B-1200L BND-IPX7B-1728L
1 Inner size(mm) 300*300*1200 600*600*1200 1000*800*1200 1000*1000*1200 1200*1200*1200
2 outer size(mm) 360*360*1300 660*660*1300 1080*880*1300 1080*1080*1300 1280*1280*1300
3 Thickness of plate 1.5mm 1.5mm 1.5mm 2mm 2mm
4 highest water depth 1.2m
5 Water adjustment Manual adjustment
6 Water level display Stainless steel ruler(show several degree 1mm)
7 Tank  material Stainless steel
8 Standard IEC60529:1989+A1:1999,GB4208,GB7000.(IPX7)


5, IPX8 Air pressure Water Immersion Test Chamber

No. Model IPX8-30M-100L IPX8-30A-100L IPX8-50M-100L IPX8-50A-100L IPX8-120A-100L
1 Pressure adjustment method manual adjustment automatic adjustment manual adjustment automatic adjustment automatic adjustment
2 control accuracy visual inspection
(manual)
±0.002Mpa(AUTO) visual inspection
(manual)
±0.002Pa(AUTO) ±0.002Pa(AUTO)
3 Pressure adjustment range 0.05-0.3Mpa 0-0.3Mpa 0.05-0.5Mpa 0-0.5Mpa 0-1.2Mpa
4 Test water depth range 5-30M 0-30M 5-50M 0-50M 0-120M
5 Exhaust Pressure of safety valve 0.35Mpa 0.35Mpa 0.55Mpa 0.55Mpa 1.25Mpa
6 The maximum limit of pressure 0.4Mpa 0.4Mpa 0.6Mpa 0.6Mpa 1.3Mpa
7 accuracy 0.4 class 0.001Mpa 0.4 class 0.001Mpa 0.001Mpa
8 The thickness of the tank 3mm 3mm 4mm 4mm 6mm
9 thickness of flange 20mm 20mm 25mm 25mm 30mm
10 diameter of the tank 0.5M
11
