IPX5 IPX6 Spray Hose Nozzle Tester, water Nozzle Tester
Specifications
1,internal diameter of the nozzle:6.3mm
2,delivery rate:12.5/min+/- 5%
3,water pressure:to be adjusted to achieve the specified delivery rate
4,Core of the substantial stream:circle of approximately 40mm diameter at 2.5 distance from nozzle
5,Test duration per square meter of enclosure surface area likely to be sprayed :1mm
6,Minimum test duration :3min
7,Distance from nozzle to enclosure surface:between2.5 and 3m
Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.The interchangeable nozzles assemble easily to the jet handle.
The nozzles are made from stainless steel.
|
Pressure Gauge
|
0 - 1.6 bar
|
|

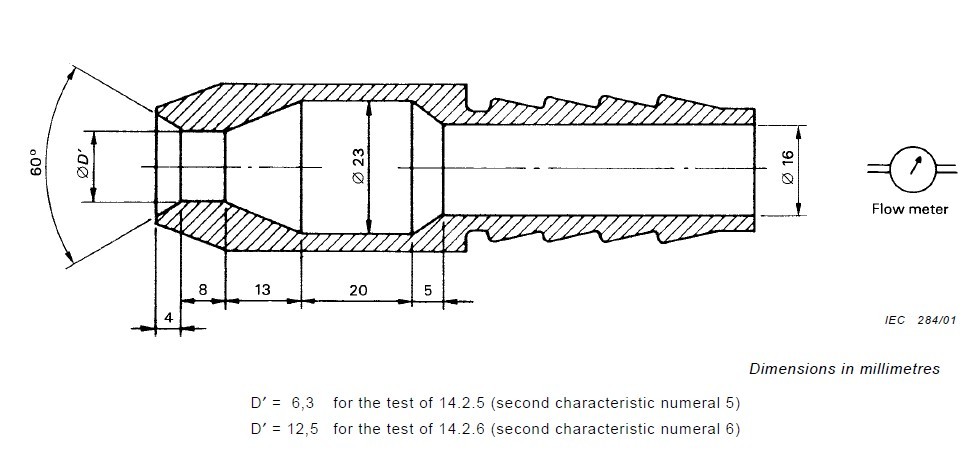

Nozzle Diameter
|
6.3mm(IPX5) ; 12.5mm(IPX6)
|
|
Material
|
Stainless steel nozzle
|
|
Reference standards
|
IEC60529 IPX5 IPX6, IEC60598-1
IEC 60335-1,IEC60745-1
|
Include: Pressure gauge.
Stainless steel nozzle.
Valve for water flow regulation and shut off
.
|
