Specification:
1, According to : UL1278,
UL1026 and UL507

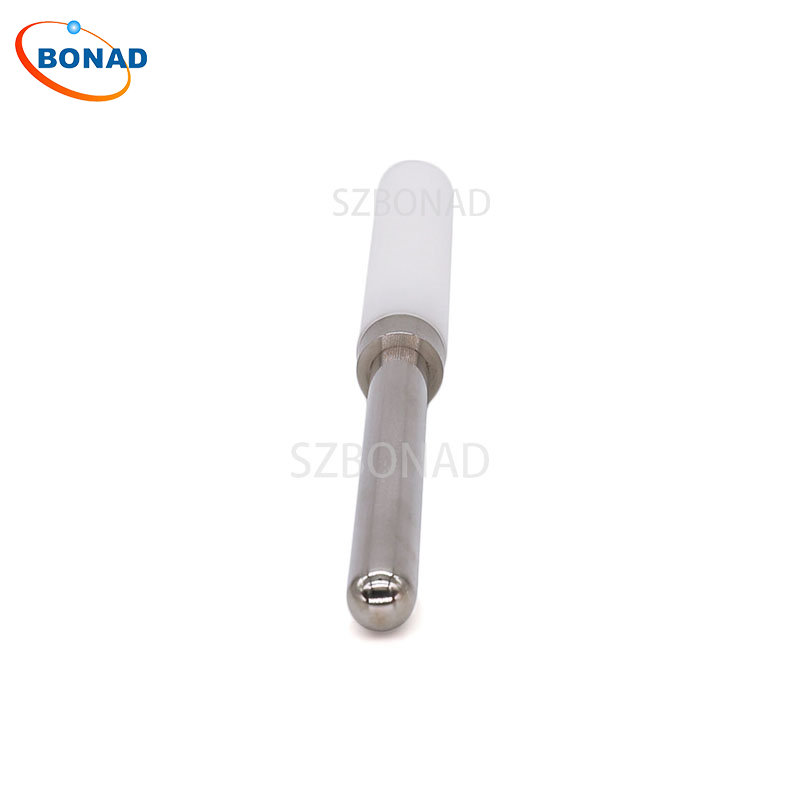

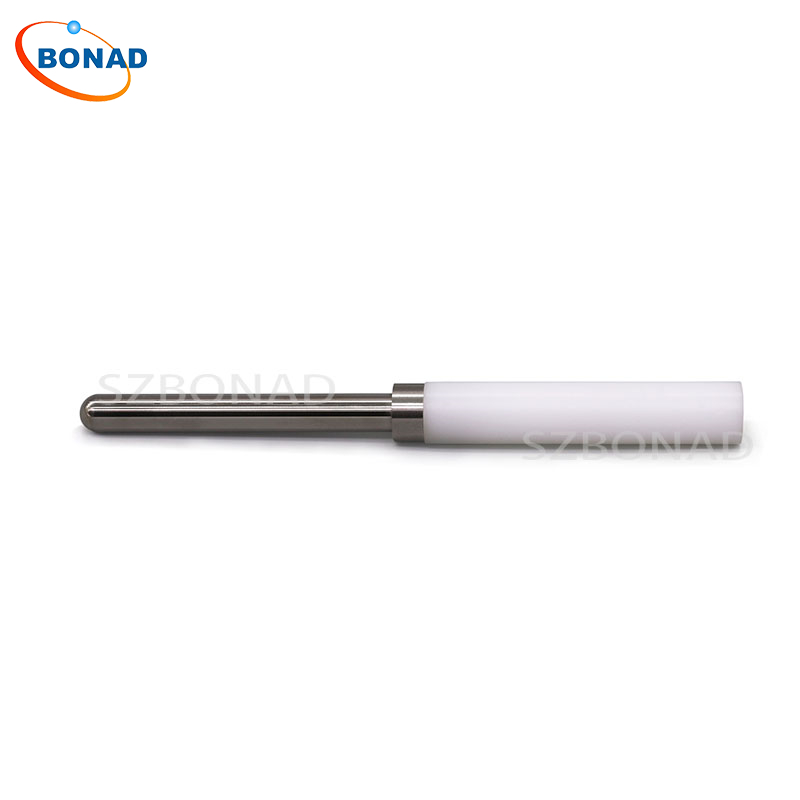

2, PA140 Test
Probe / UL Test Finger Probe is
necessary appliance for household and similar electrical appliance of
against electric shock protection test.
Technical
parameters:
1, Probe Diameter:
12.7mm(1/2 inch)
2, Probe Total
:101.6mm(4 inch)
3, Head Radius :R
6.4mm(1/4 inch)
4, Tail Diameter:
19.1mm(3/4 inch)
5, According to UL1026
(PA140A), UL1278 figure (PA140A)

|
