Specification:
1, According to :
UL1278、UL1026 and UL507 Figure 8.1.

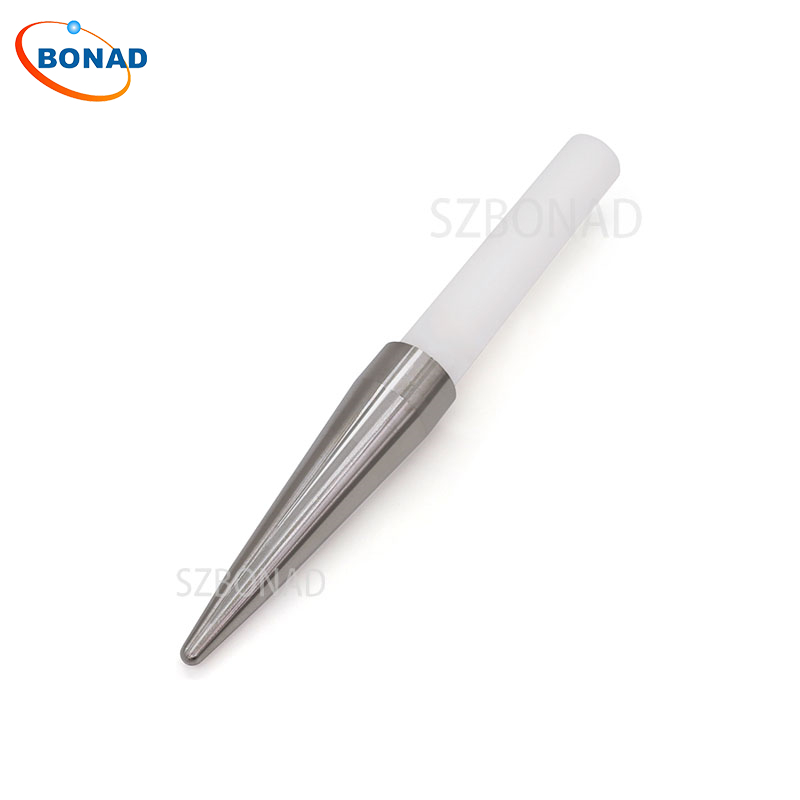

2, PA160B Test
Probe/ UL Test Probe is necessary
appliance for household and similar electrical appliance of against
electric shock protection test
Technical
Parameters:
1, Total Length
:88.9mm(3.5 inch)
2, Head Length
:25.4mm(1 inch)
3, Head Radius: R
3.175mm(1/8 inch)
4, Former Head
Diameter:12.7mm(1/2 inch)
5,Tail Diameter
:25.4(1 inch)
6, Reference standards
:UL507 (PA160B), figure 132.1 UL1278 figure 9.1 (PA160)
Application:
According to
different standard, the method of use is slightly difference. UL Test Probe can
not touch the hazardous parts. In most case, it needs to exert certain 4.4 N (1
lb).
Note: Because UL
test Probe is precision machinery product, please taking up and putting down
gently, and safe keeping

|
