Basic Introduction:
1,According to: GB/T4208-2008、IEC61032:1997、IEC60529:2001 AND UL

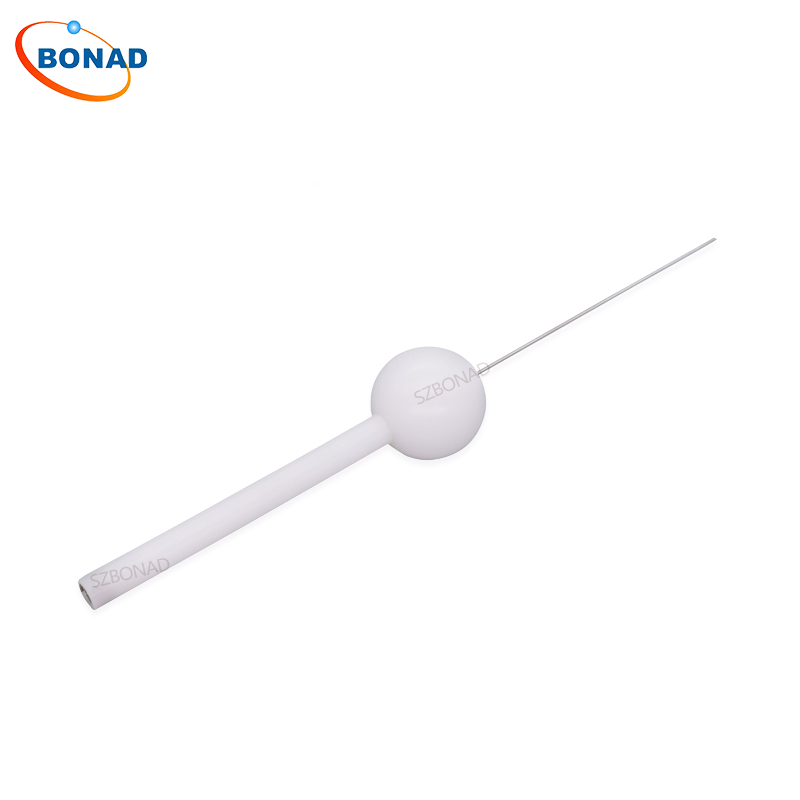

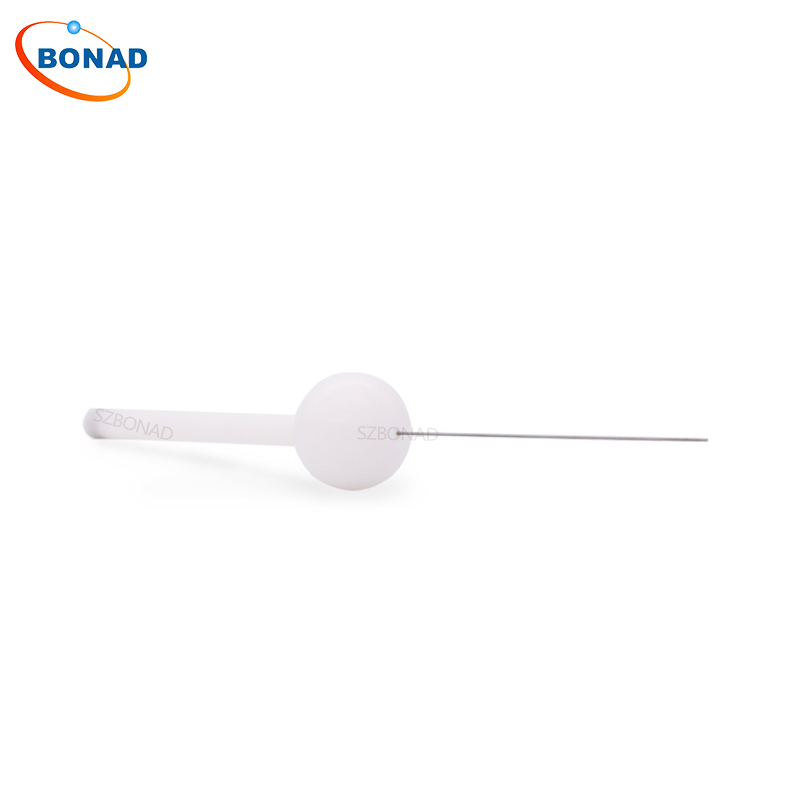

2，IP4X Test Probe D ( Test Probe D)is necessary appliance for household and similar electrical appliance of against electric shock protection test.
Technical parameters
1, Test Probe Length :100mm
2, Test Probe Diameter:1.0mm
3, Dam- sphere Diameter:35mm
4, Handle Diameter:10mm
5, Handle Length 100mm
6, According to IEC61032 figure 4 (the Test probe D), table 6 GB/T4208-2008 (the first characteristic digital 4/5/6)
Application:
1, The joint part of Standard test probe can't touch the live parts or close to the dangerous parts, 30mm circular baffle can not be entered into .
2,In the test requirements of preventing from accessing to the hazardous parts, Test Probe D need to be with thrust 1±0.1N

|
