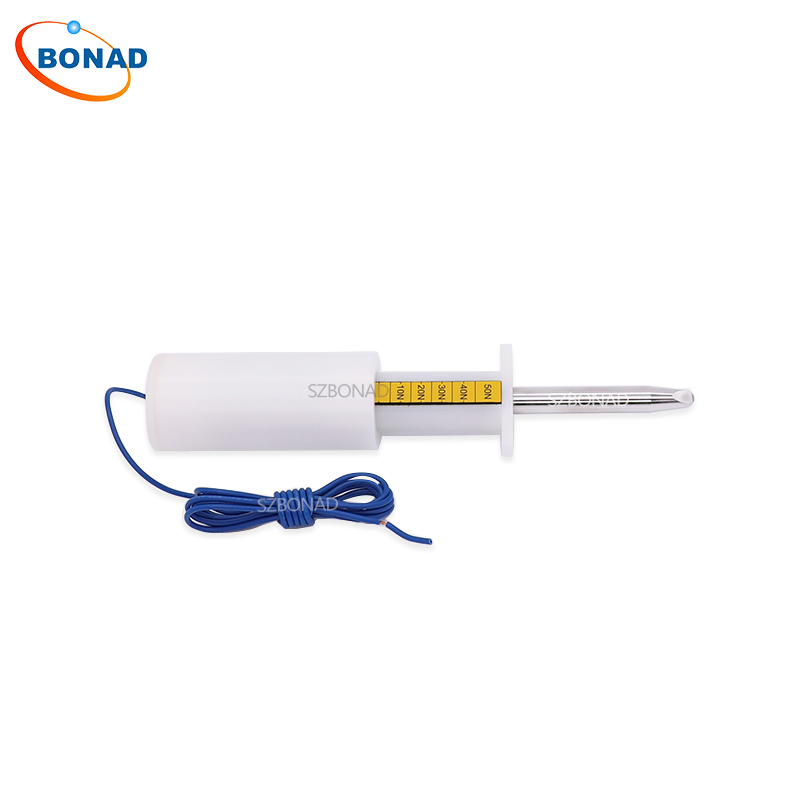

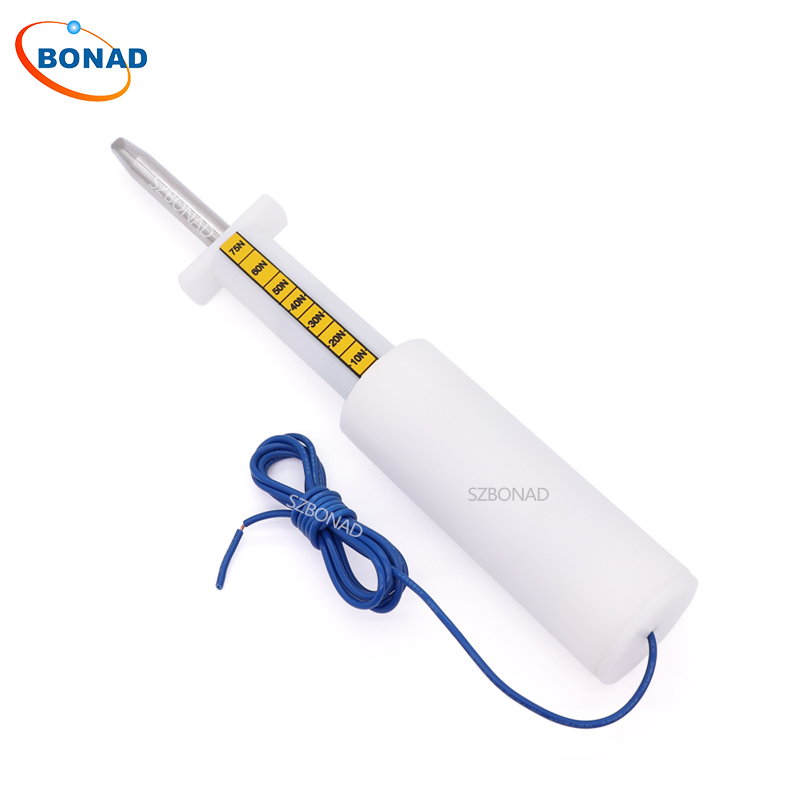

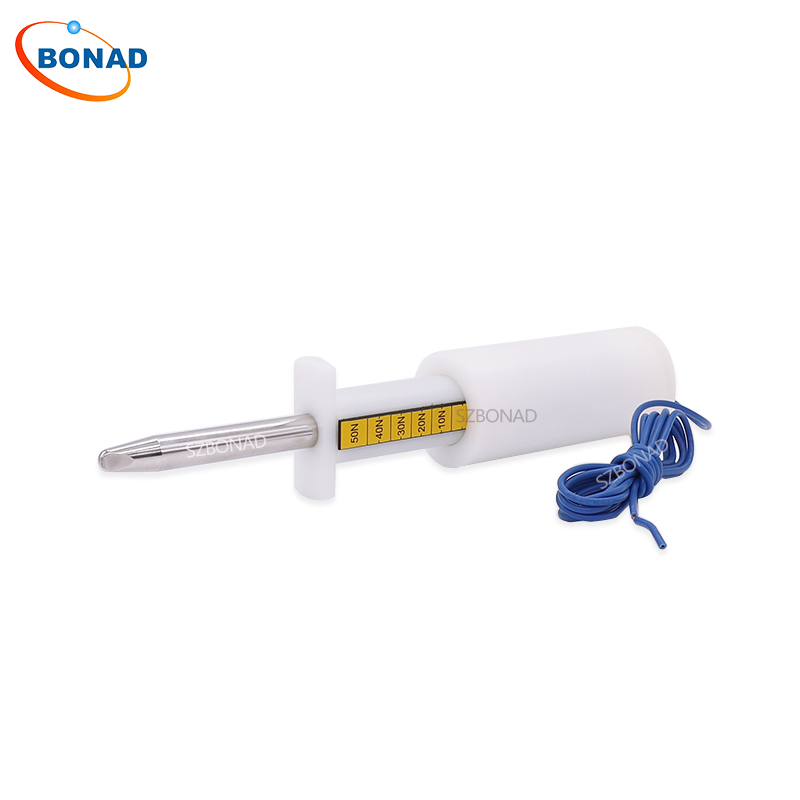

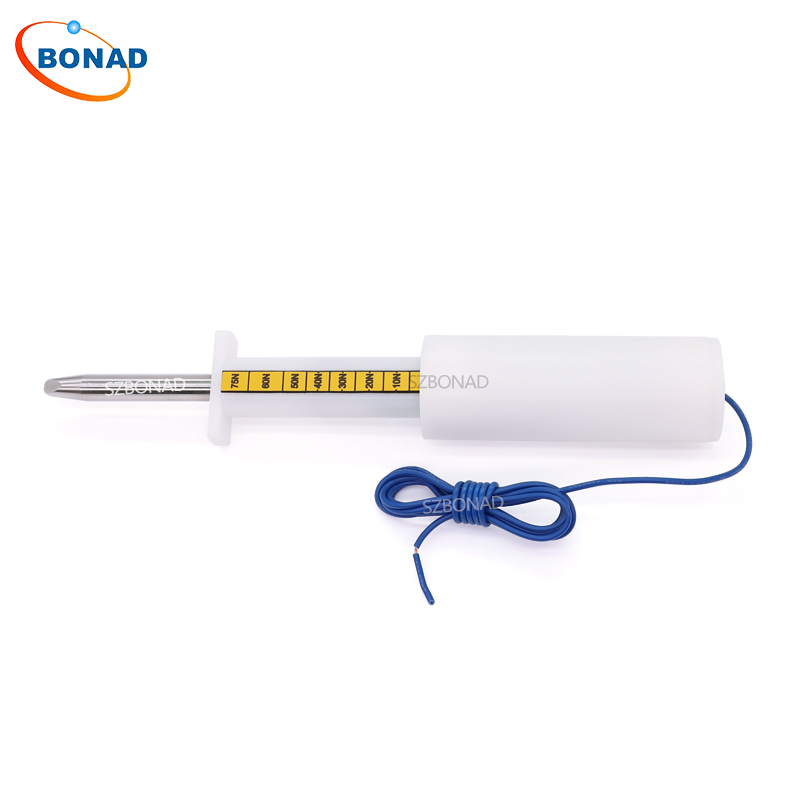

IEC60065 BND-1150 Rigid Test Probe With 50N/75N thrust
Model:
BND-1150 Rigid Test Probe With 50N
BND1175 Rigid Test Probe With 75N
Basic Introduction:
1, According to : GB4706、IEC335、IEC61032、IEC60065
2，It is used to the protective performance check of the apparatus structures and shells which is easy to access live parts
Technical parameters
1, Nodular Finger Diameter :12mm
2, Nodular Finger Length:80mm
3, Dam- board Diameter:50mm
Dynamometer:
BND-1150 type:10N-50N
BND-1175 type: 10N-75N
Application:
1, The finger of the Thrust Test Finger Probe can not touch the live parts or not close to hazardous parts, 50m,-20mmdam-board can not be entered into .
2,In the test requirements of preventing from accessing to the hazardous parts, Thrust Test Finger should be applied thrust
BND-1150 Rigid Test Probe With 50N Force

BND-1175 Rigid Test Probe With 75N Force

|
