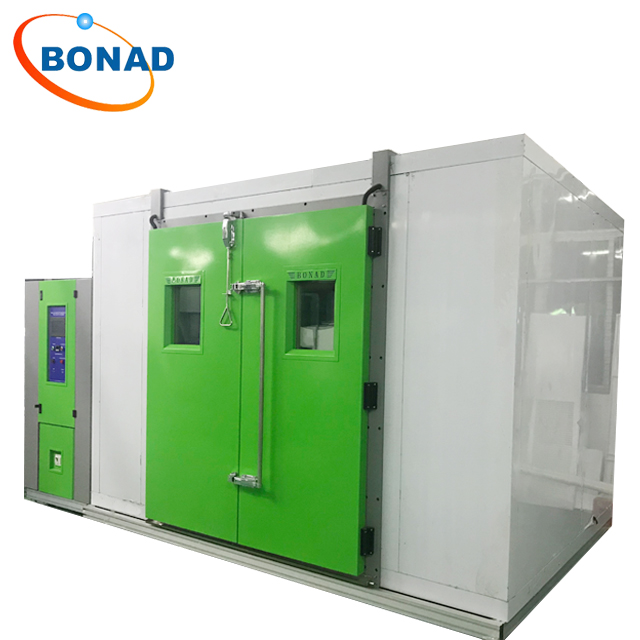

Programmable Walk-in Environmental High And Low Temperature Test Chamber
Name:Programmable Walk-in Environmental High And Low Temperature Test Chamber
Type:BND-PTHW-12000B
Manufacturer:Programmable constant temperature and humidity test chamber
Product Description:

programmable Walk-in environmental high and low temperature test chamber


Model:BND-PTHW-12000B

Product name
Model

Programmable constant temperature and humidity test chamber
BND-PTHW-12000B

Limit sample

The test equipment prohibits:
Flammable, explosive, volatile substances Specimen test or storage
Test or storage of corrosive substances
Test or storage of biological samples
Test or storage of samples of strong electromagnetic emission sources

Volume, size and weight:

2.1. Nominal volume
2.2. Inner box size
2.3. Dimensions
2.4. Weight
2.5.door

12000L
W3000 X H2000 x D2000mm
W4000 X H2300 x D2200mm
About: 2000 kg.
Large inspection glass door box single open W800 × H1800 mm

performance

Testing conditions

Ambient temperature of +25 oC, relative humidity ≤ 85%, test chamber without sample conditions

Testing method

GB/T 5170.2-1996 temperature testing

Temperature range

-20oC→+85oC

temperature fluctuation

±0.5oC

Temperature deviation

±2.0oC

Humidity range

20%~98%R.H

humidity fluctuation

±2.5%R.H.

humidity uniformity

75%±3.0%   75%±5.0%.

Temp.rising speed

+10oC→+80oC   25 min  nonlinearity(loaded).

Temp.falling speed

1oC/ min  nonlinearity(loaded,The control system is automatically adjusted)

standards

IEC68-2-1 test A:
IEC68-2-2 test B:



walk in temperature and humidity test chamber.jpgwalk in temperature humidity test equipment.jpg
