Specification:

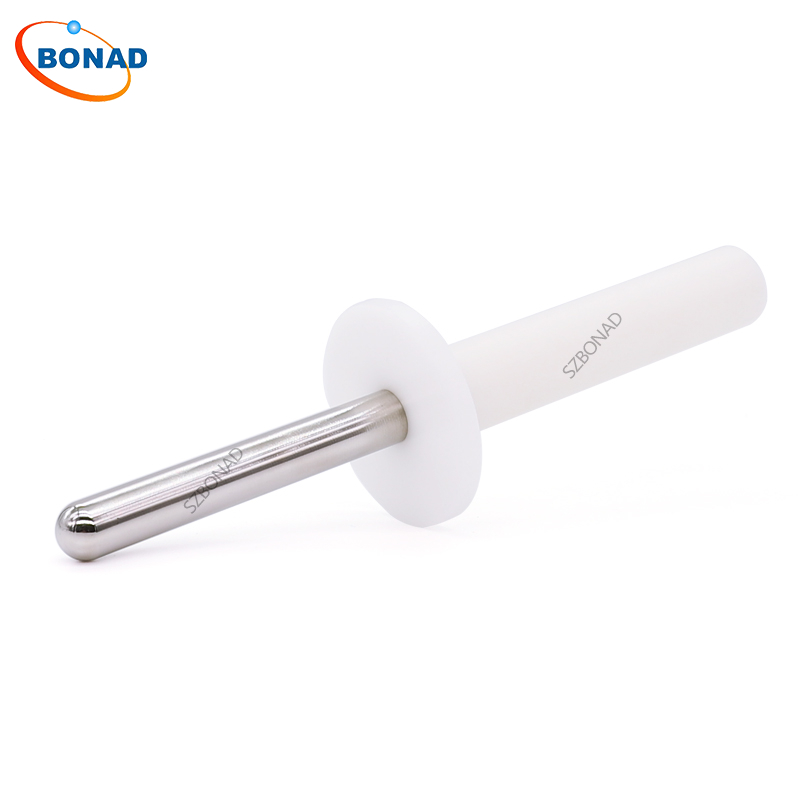

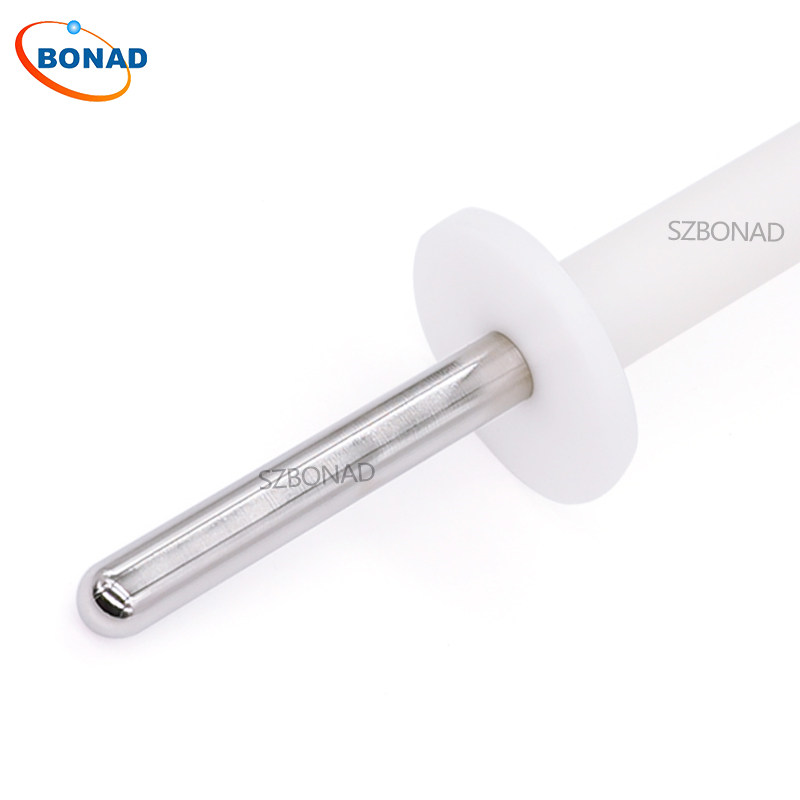

Test Probe,12 mm Test Probe,
According to : GB4943， IEC950，GB8898、IEC60065， IEC62151，UL6500
Technical parameters
1, Probe Diameter:12mm
2, Probe Ball Diameter: 6mm
3, Probe Length: 80mm
4, Baffle Plate Diameter:50mm
5, Baffle Plate Thickness :5mm
6, Handle Diameter:10mm
7, Handle Length:100mm
Application:
The 12mm metal parts of the Test Probe can not touch the live parts or not close to hazardous parts,and 50mm baffle plate can not be entered . In the test requirements of protected against access to the hazardous parts.The Thrust Test Finger should be applied thrust
Note: Test Probe is made of precision stainless steel, taking up and putting down slightly when using, pay attention to maintenance.

|
